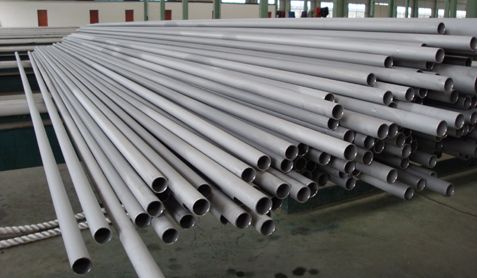

Hastelloy Alloy B-3 Pipes & Tubes

Material Description UNS N010675 Chemical Composition, % Ni Mo Fe C Co Cr Mn Si Ti W Al Cu 65.0 min 28.5 1.5 .01 max 3.0 max 1.5 3.0 max .10 max .2 max 3.0 max .50 max .20 max Hastelloy B-3 is a nickel-molybdenum alloy with excellent resistance to pitting, corrosion, and stress-corrosion cracking plus, thermal stability superior to that of alloy B-2. In addition, this nickel steel alloy has great resistance to knife-line and heat–affected zone attack. Alloy B-3 also withstands sulfuric, acetic, formic and phosphoric acids, and other non-oxidizing media. Furthermore, this nickel alloy has excellent resistance to hydrochloric acid at all concentrations and temperatures. Hastelloy B-3’s distinguishing feature is its ability to maintain excellent ductility during transient exposures

to intermediate temperatures. Such exposures are routinely experienced during heat treatments associated with fabrication.

Limiting Factors of Hastelloy Alloy B-3

Alloy B-3 has poor corrosion resistance to oxidizing environments, therefore, it is not recommended for use in oxidizing media or in the presence of ferric or cupric salts because they may cause rapid premature corrosion failure. These salts may develop when hydrochloric acid comes in contact with iron and copper. Therefore, if this nickel steel alloy is used in conjunction with iron or copper piping in a system containing hydrochloric acid, the presence of these salts could cause the alloy to fail prematurely.

Characteristics

● Maintains excellent ductility during transient exposures to intermediate temperatures

● Excellent resistance to pitting, corrosion and stress-corrosion cracking

● Excellent resistance to knife-line and heat-affected zone attack

● Excellent resistance to acetic, formic and phosphoric acids and other non-oxidizing media

● Resistance to hydrochloric acid at all concentrations and temperatures

● Thermal stability superior to alloy B-2.

Application

● Chemical processes

● Vacuum furnaces

● Mechanical components in reducing environments

Seamless Tube Information:

Specification: ASTM B-622 / ASME SB-622

Outside Diameter: 6.0-114 mm

Wall Thickness: 0.5-15 mm

Length: Max.24000mm (the maximum length is for the scope of special diameters and walls)

Other sizes are on the request
