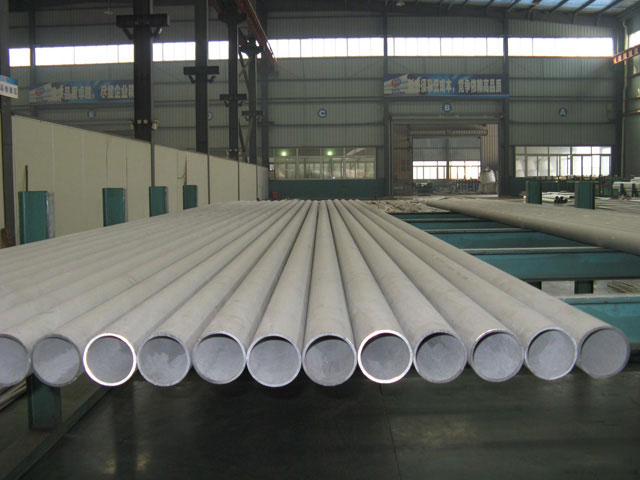

Incoloy Alloy 926 Pipes & Tubes

Material Description UNS N08926 Chemical Composition, % Ni Fe Cr Mo Cu Ti C Mn S Si N 24.0-26.0 Bal. 19.0-21.0 6.0-7.0 0.5-1.5 .6-1.2 .02 max 2.0 max .01 max .5 max .15-.25 Incoloy alloy 926 is a nickel-iron-chromium alloy with additions of molybdenum, nitrogen. Corrosion Resistance Good resistance to pitting and crevice corrosion in the halide media. Meantime, nickel and nitrogen not only ensures the stability of metallographical, but also reduce separating inter-granular trend in the thermal process or welding process better than the nitrogen content of alloy 926 has particular corrosion resistance in the chloride ions medium due to the excellent local corrosion resistance and 25% nickel alloy content. A variety of experiments in the 10000-70000ppm of Chloride concentration, PH 5-6, 50-68℃ operating temperature of the slurry of limestone FGD system show that, after a 1-2 year trial period, 926 alloy without pitting and crevice corrosion. Alloy 926 in other

chemical media also has good corrosion resistance in the high temperature and high concentration of media, including sulfuric acid, phosphoric acid, acid gas, sea water, salt and organic acids.

Application

● Fire system, water purification system, marine engineering and hydraulic piping perfusion system

● The pipeline, joint, air systems in the acidic gas production

● Evaporator, the heat exchanger, filter, mixer, etc. in the phosphate production

● Power plants condensation and pipe system in the use of sewage water to cool water

● The use of acidic organic catalyst chlorinated derivatives production

● The production of cellulose pulp bleacher

● Polished bar in the corrosive oil wells

● Hose system in the ocean engineering

● Flue gas desulphurization system components

● Sulfuric acid condensation and separation system

● Crystalline salt concentration and the evaporator

● Transport of corrosive chemicals containers

● Reverse osmosis desalination plant

Seamless Tube Information:

ASTM B-163 / ASME SB-163, ASTM B-407 / ASME SB-407, ASTM B677 / ASME SB677

Outside Diameter: 6.0-114 mm

Wall Thickness: 0.5-15 mm

Length: Max.24000mm (the maximum length is for the scope of special diameters and walls)

Other sizes are on the request
