Material Description
UNS S31600
EN Number 1.4401, 1.4436
Chemical Composition, %
C
Mn
P
S
Si
Cr
Ni
Mo
.08
2.0
.045
.03
1.0
16.0-18.0
10.0-14.0
2.0-3.0
TP316 is a molybdenum-alloyed austenitic stainless steel.
Application
TP316 is used for a wide range of industrial applications where steels
of TP304 and TP304L have insufficient corrosion resistance. Typical
examples are: heat exchangers, condensers, pipelines, cooling and
heating coils in the chemical, petrochemical, pulp and paper and food
industries.

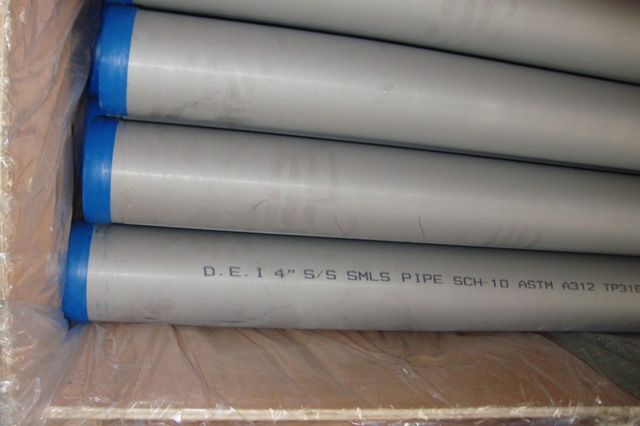

Seamless Tube Information
Specification: ASTM A-213 / ASME SA-213, ASTM A-269 / ASME SA-269, ASTM A312 / ASME SA312, EN10216-5, DIN17458
Outside Diameter: 6.0-406 mm (1/4’’ – 16’’)
Wall Thickness: 0.5-35 mm (0.0196’’ – 1.378’’)
Length: Max.33000 mm (the maximum length is for the scope of special diameters and walls)
Other sizes are on the request
