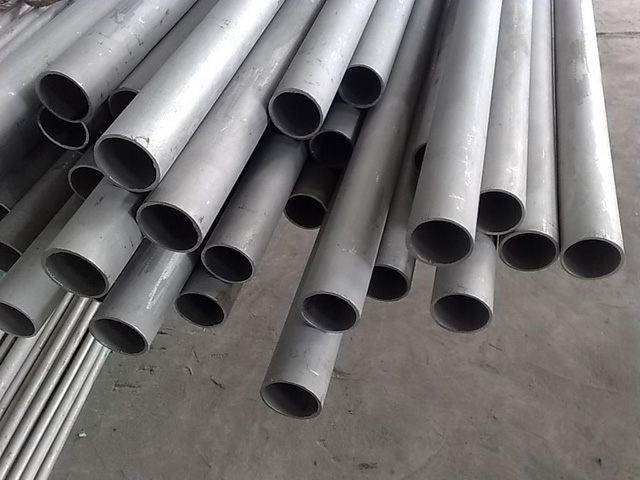

TP348 Stainless Steel Pipes & Tubes

Material Description UNS S34800 Chemical Composition, % C Mn P S Si Cr Ni Co Ta .08 max 2.0 .045 .03 1.0 17.0-19.0 9.0-12.0 .20 .10 TP348 is a columbium-and-tantalum stabilized stainless chromium-nickel steel which offer as their main advantage an excellent resistance to intergranular corrosion following exposure to temperatures in the chromium carbide precipitation range from 800 to 1500°F (427 to 816°C). TP348 has restricted cobalt and tantalum content for nuclear applications. TP348 stainless steel is advantageous for high temperature service because of their good mechanical properties. TP348 stainless steel offers higher creep and stress rupture properties than TP304. This results in higher elevated temperature allowable stresses for these stabilized alloys for ASME Boiler and Pressure Vessel Code applications.

TP348 has maximum use temperatures of 1500°F (816°C) for code applications as does TP304 stainless, whereas TP304L stainless is limited to 800°F (426°C).

The properties of TP348 stainless steel are similar to the properties of TP347, and according to ASTM A240 their chemical compositions are the same except for tantalum and cobalt contents.

Corrosion Resistance

TP348 stainless steel offers similar resistance to general, overall corrosion as the unstabilized chromium-nickel TP304 stainless steel.

TP348 stainless steel is used primarily in high temperature applications where high resistance to sensitization is essential, thereby preventing intergranular corrosion at lower temperatures.

TP348 stainless steel is useful in applications where the unstabilized chromium-nickel steels, such as TP304 stainless steel, would be susceptible to intergranular corrosion.

Application

● In different kinds of nuclear applications

● Petrochemical refinery industries

● Chemical production industries

Seamless Tube Information

Specification: ASTM A-213 / ASME SA-213, ASTM A-269 / ASME SA-269, ASTM A312 / ASME SA312

Outside Diameter: 6.0-406 mm (1/4’’ – 16’’)

Wall Thickness: 0.5-35 mm (0.0196’’ – 1.378’’)

Length: Max.33000 mm (the maximum length is for the scope of special diameters and walls)

Other sizes are on the request
