Material Description
UNS N06601
Chemical Composition, %
Ni
Cr
Al
C
Mn
Si
Fe
61.5
22.5
1.4
.05
.3
.2
14
Inconel 601 is a nickel-chromium alloy used for applications that
require resistance to corrosion and heat. This nickel alloy stands out
due to its resistance to high temperature oxidation, remaining highly
resistant to oxidation through 2200° F. Alloy 601 develops a tightly
adherent oxide scale which resists spalling even under conditions of
severe thermal cycling. This nickel alloy has good high temperature
strength, and retains its ductility after long service exposure. It has
good resistance to aqueous corrosion, high mechanical strength, and is
readily formed, machined and welded. Inconel 601’s properties make it a
material of broad utility in fields like thermal processing, chemical
Characteristics
● Outstanding oxidation resistance to 2200° F
● Resists spalling even under severe thermal cycling conditions
● Highly resistant to carburization
● Good creep rupture strength
● Metallurgical stability.
Application:
● Chemical Processing
● Aerospace
● Heat treating industry
● Power generation
● Heat treating muffles and retorts
● Radiant tubes
● Catalyst support grids in nitric acid production
● Steam superheater tube supports

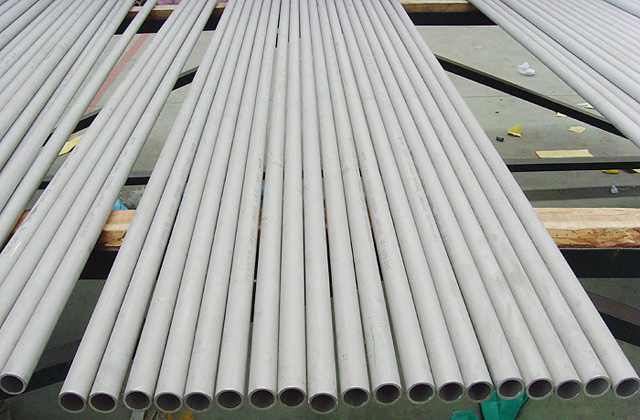

Seamless Tube Information
Specification: ASTM B-163 / ASME SB-163, ASTM B-167 / ASME SB-167
Outside Diameter: 6.0-114 mm
Wall Thickness: 0.5-15 mm
Length: Max.24000mm (the maximum length is for the scope of special diameters and walls)
Other sizes are on the request
